Eckverbindung 90° durchgehend 42,4 mm (1¼”)

Grey metal corner joint, connecting four blue tubes at a 90-degree angle. One tube runs vertically through the centre, with three others attached horizontally at the sides. Black fixing screws are visible at the top.

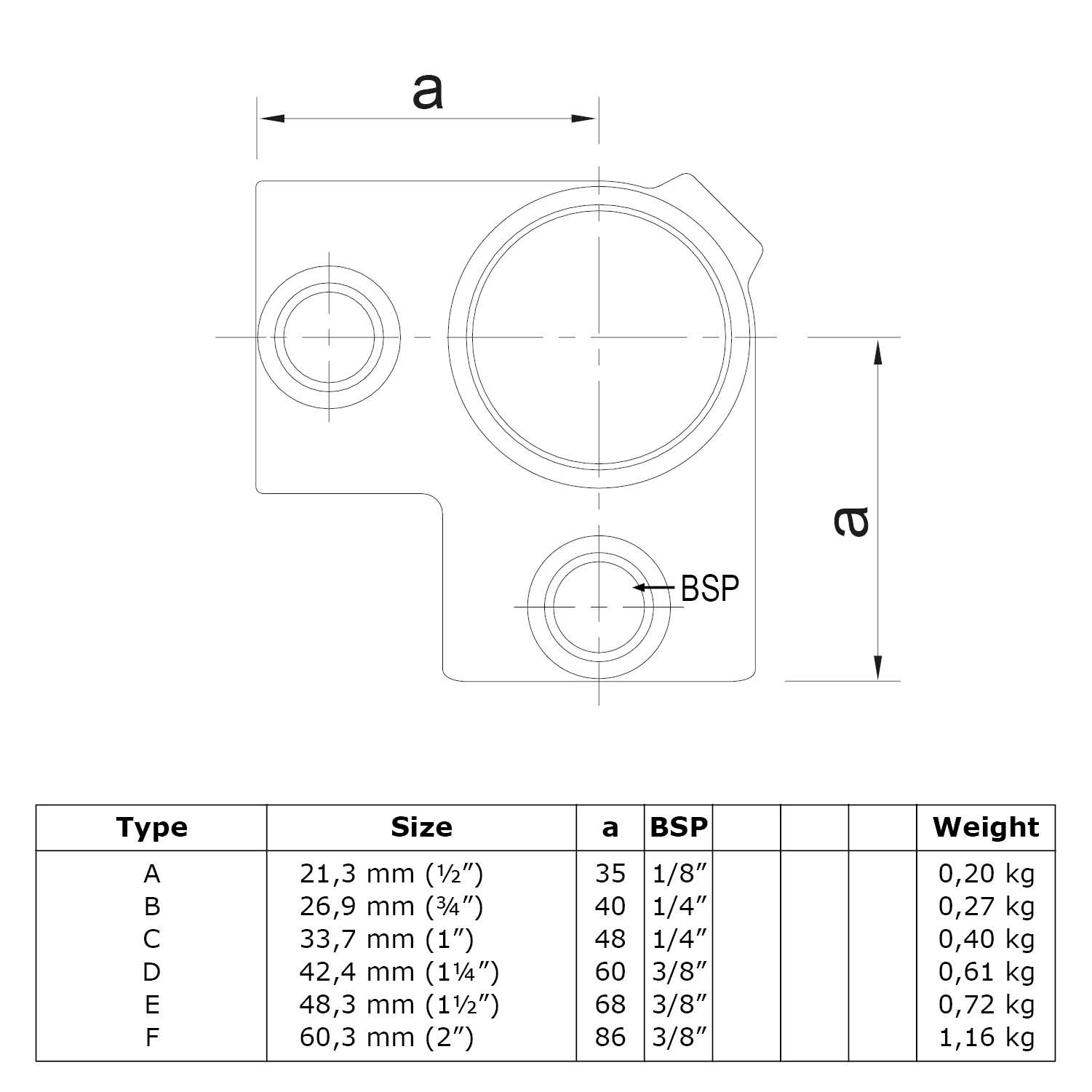

Technical drawing of a 90° corner joint with a large through-hole for pipes and two smaller BSP threaded holes. Top view shows dimension 'a' and drilling positions. Table below: Types A–F with size, thread and weight.

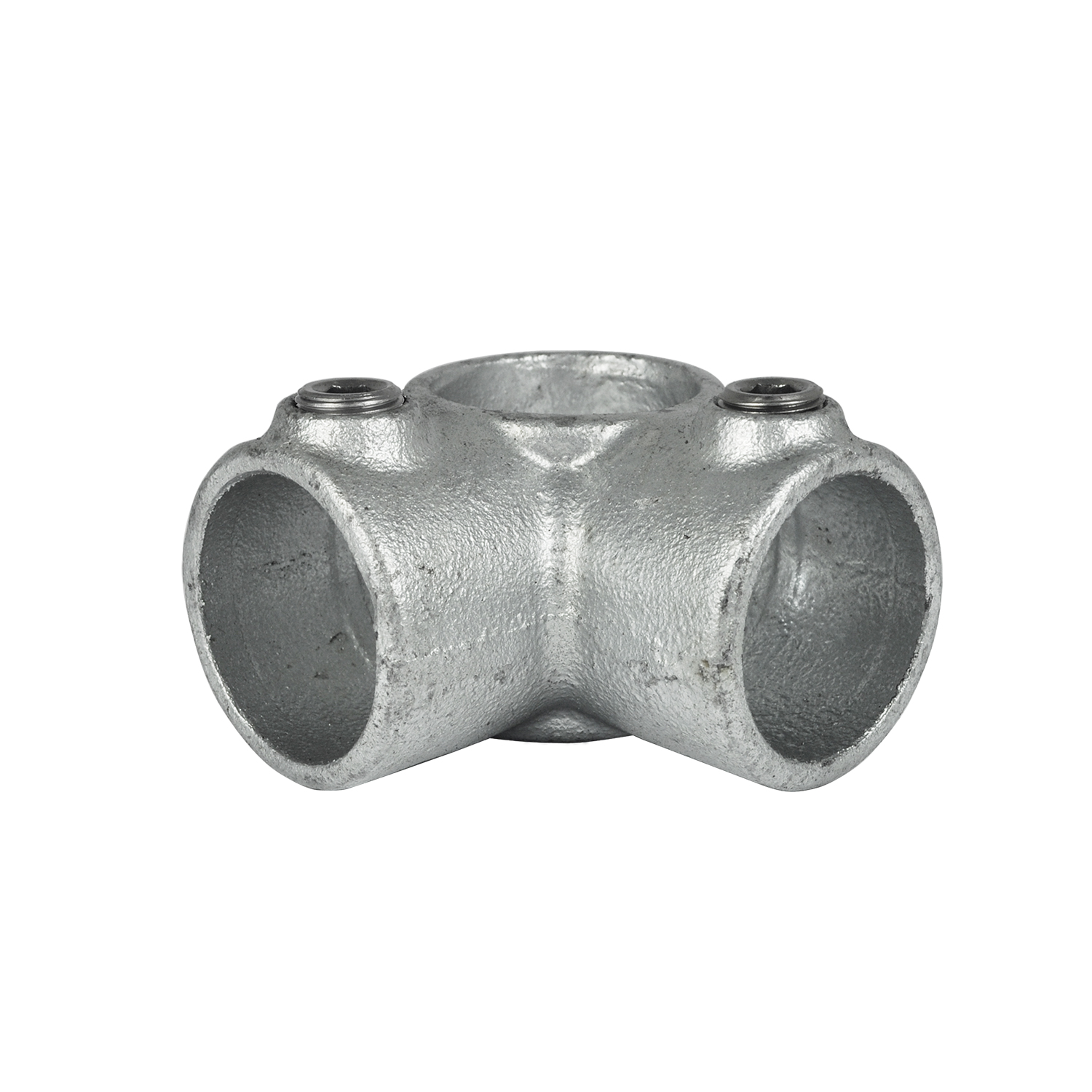

Sturdy, silver-coloured 90° metal corner connector for 26.9 mm (¾”) pipes. One channel runs straight through, with a third opening branching off at a right angle. Two visible screws secure the pipes. Coarsely textured, galvanised steel.

Grey metal corner joint, connecting four blue tubes at a 90-degree angle. One tube runs vertically through the centre, with three others attached horizontally at the sides. Black fixing screws are visible at the top.

Technical drawing of a 90° corner joint with a large through-hole for pipes and two smaller BSP threaded holes. Top view shows dimension 'a' and drilling positions. Table below: Types A–F with size, thread and weight.

Sturdy, silver-coloured 90° metal corner connector for 26.9 mm (¾”) pipes. One channel runs straight through, with a third opening branching off at a right angle. Two visible screws secure the pipes. Coarsely textured, galvanised steel.

CHF 13.60*

Prices exclude VAT and are subject to delivery charges

Product number:

608020D

Manufacturer:

Lunado

Weight:

0.61 kg

Diameter:

42.4 mm

"Eckverbindung 90° durchgehend 42,4 mm (1¼”)"

Wird verwendet als Gegenstück zu Typ 18, das Rohr passt durch den Verbinder.
