Fussplatte, eckig, durchgehend 42,4 mm (1¼”)

A square base plate made of silver, textured metal, which holds a blue tube vertically. A hexagon bolt secures the tube at the side within the through-type connector. Two round holes on the base are provided for fixing.

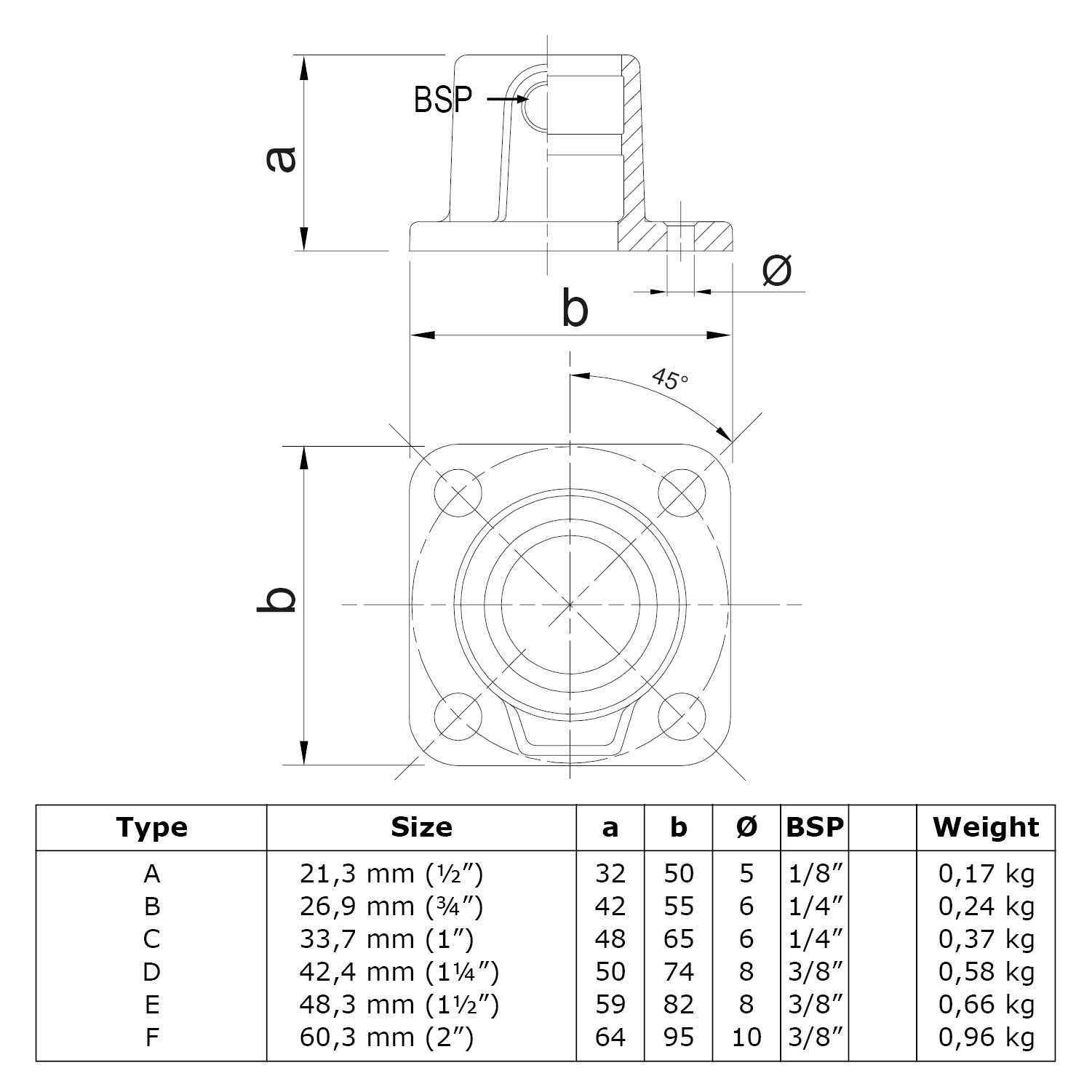

Technical drawing of the square base plate with pipe opening. Shows side and top views of the pipe connector with 4 fixing holes. Table with dimensions, sizes (e.g. 26.9 mm (3/4")), BSP threads and weights.

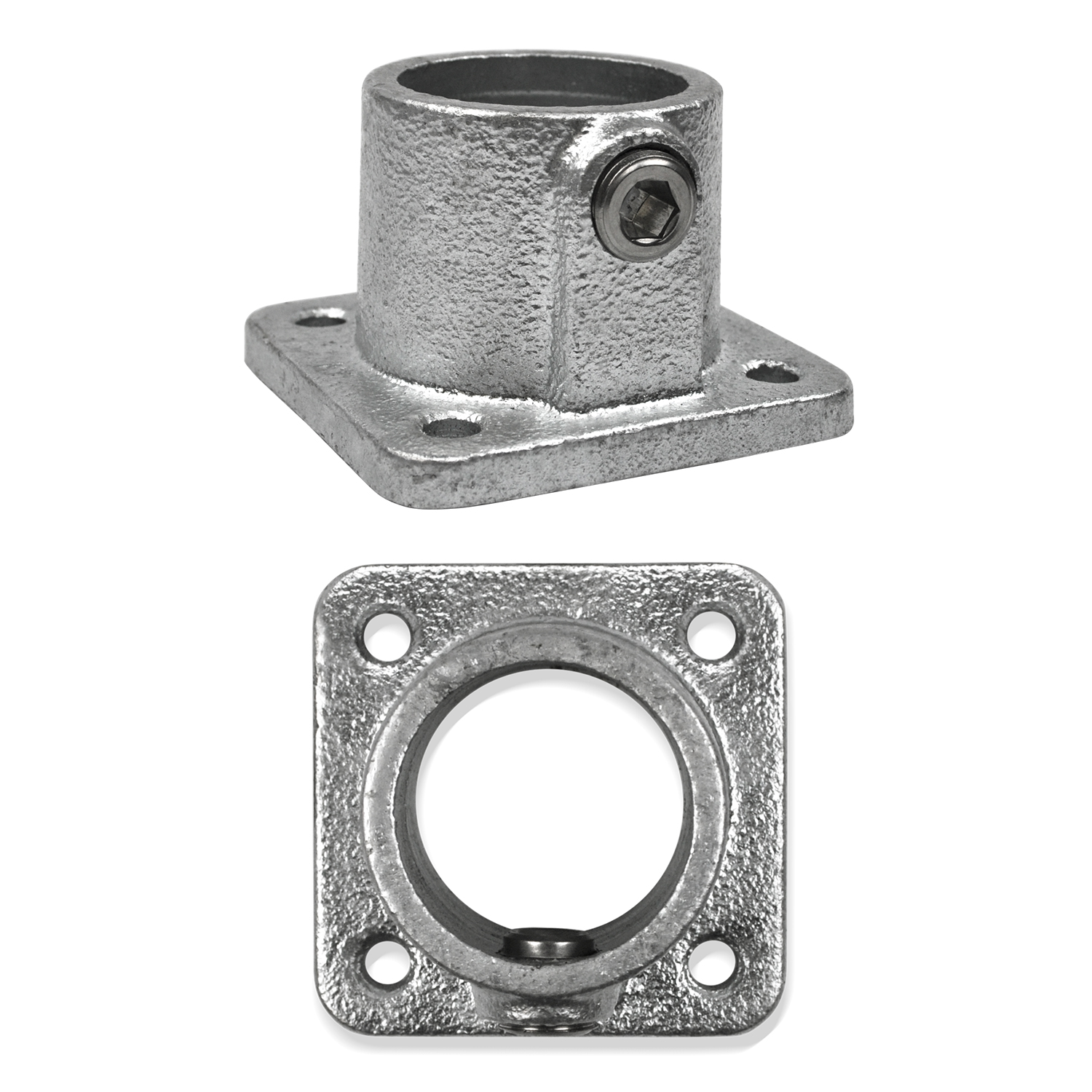

Silver, square metal base plate as a tube connector with four fixing holes. Cylindrical shaft with a hexagon socket screw on the side for securing a tube with a diameter of 33.7 mm. Views: oblique front view and top view of the underside.

A square base plate made of silver, textured metal, which holds a blue tube vertically. A hexagon bolt secures the tube at the side within the through-type connector. Two round holes on the base are provided for fixing.

Technical drawing of the square base plate with pipe opening. Shows side and top views of the pipe connector with 4 fixing holes. Table with dimensions, sizes (e.g. 26.9 mm (3/4")), BSP threads and weights.

Silver, square metal base plate as a tube connector with four fixing holes. Cylindrical shaft with a hexagon socket screw on the side for securing a tube with a diameter of 33.7 mm. Views: oblique front view and top view of the underside.

CHF 14.30*

Prices exclude VAT and are subject to delivery charges

Product number:

608011D

Manufacturer:

Lunado

Weight:

0.58 kg

Diameter:

42.4 mm

"Fussplatte, eckig, durchgehend 42,4 mm (1¼”)"

Dieser Rohrverbinder wird an Konstruktionen eingesetzt, bei denen eine Positionsfixierung erforderlich ist. Nicht als Basisflansch zur Abstützung von Schutzgeländern oder ähnlichen Systemen verwenden.
