Kreuzstück, durchgehend 42,4 mm (1¼”)

Sturdy, silver-coloured metal cross-piece for a 90° connection of four blue tubes. The connecting clamp guides the tubes horizontally and vertically, with three visible hexagon socket screws for secure fastening. Ideal for railings.

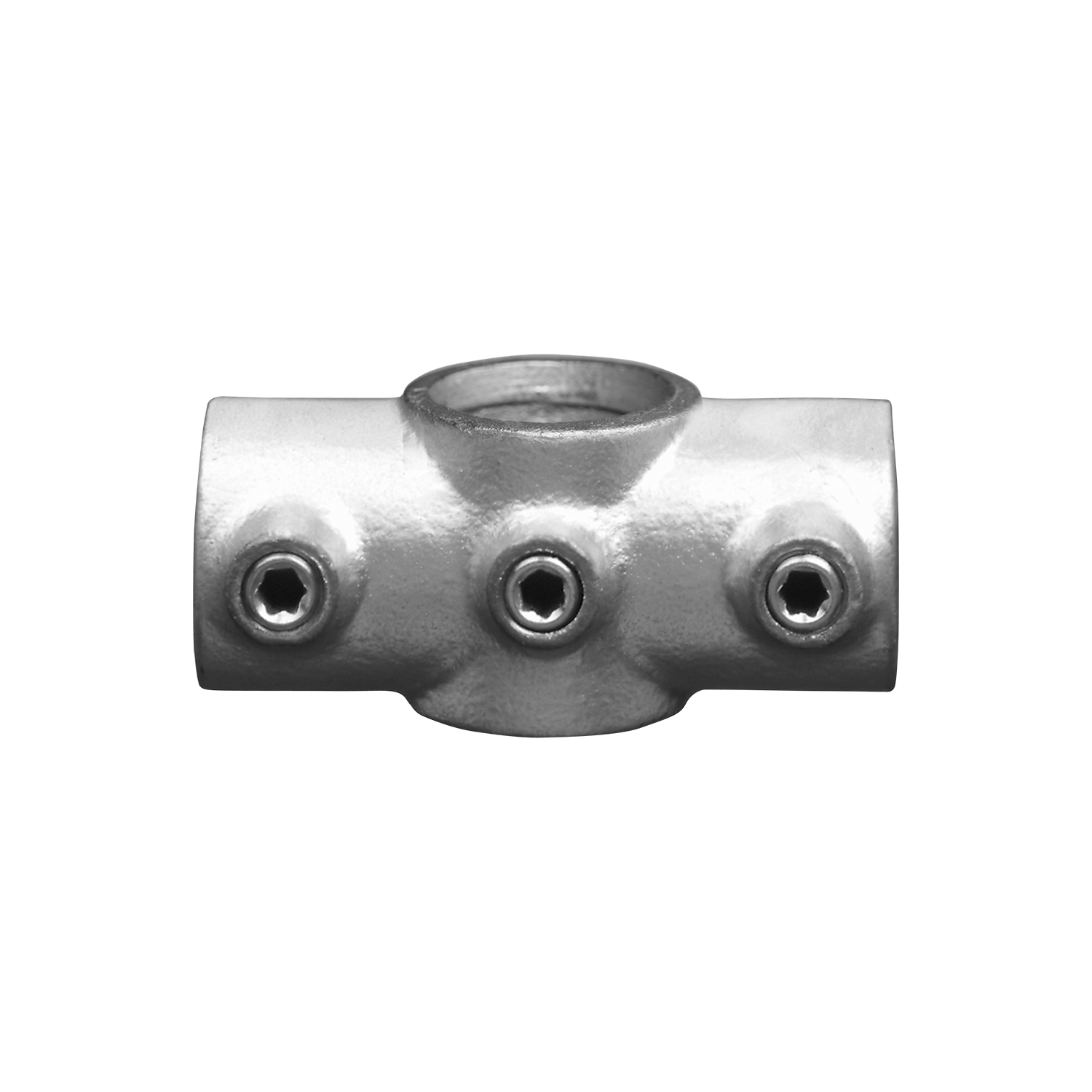

Solid silver metal cross-piece with four openings for pipe connections; three Allen screws ensure secure fastening of handrails or uprights. Through-type connecting element for 42.4 mm handrails and 48.3 mm uprights.

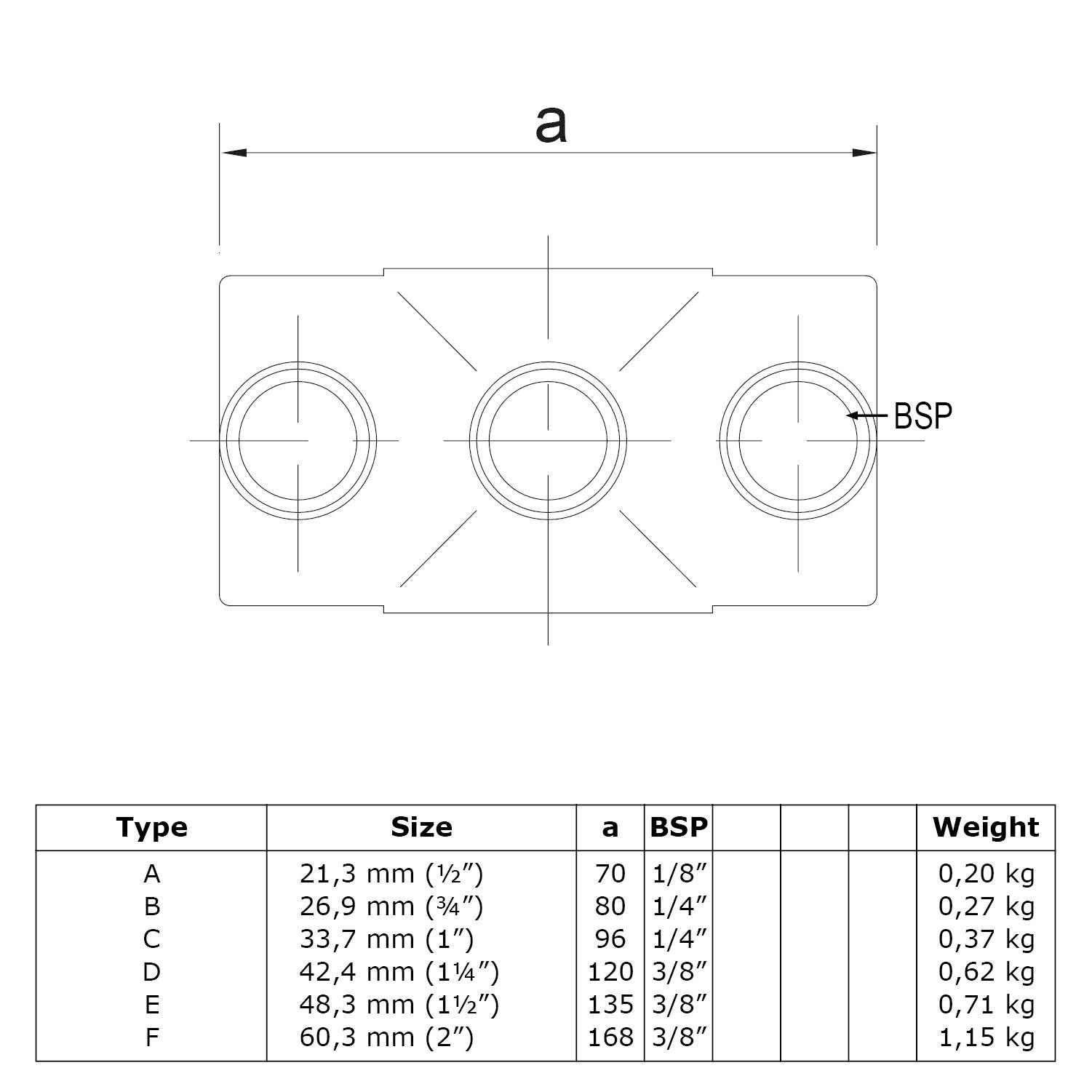

Technical diagram of a continuous cross-piece with three round openings for handrail and upright connections. Table of specifications: type, sizes 21.3–60.3 mm, overall length (a), BSP thread, weight (kg).

Sturdy, silver-coloured metal cross-piece for a 90° connection of four blue tubes. The connecting clamp guides the tubes horizontally and vertically, with three visible hexagon socket screws for secure fastening. Ideal for railings.

Solid silver metal cross-piece with four openings for pipe connections; three Allen screws ensure secure fastening of handrails or uprights. Through-type connecting element for 42.4 mm handrails and 48.3 mm uprights.

Technical diagram of a continuous cross-piece with three round openings for handrail and upright connections. Table of specifications: type, sizes 21.3–60.3 mm, overall length (a), BSP thread, weight (kg).

CHF 15.80*

Prices exclude VAT and are subject to delivery charges

Product number:

608022D

Manufacturer:

Lunado

Weight:

0.62 kg

Diameter:

42.4 mm

"Kreuzstück, durchgehend 42,4 mm (1¼”)"

90° Verbindungsschelle zwischen dem Mittelement und Stütze an Geländern.
